[팀 프로젝트] - 랜덤 워크와 이진 공간 분할 알고리즘(맵 생성 종료)

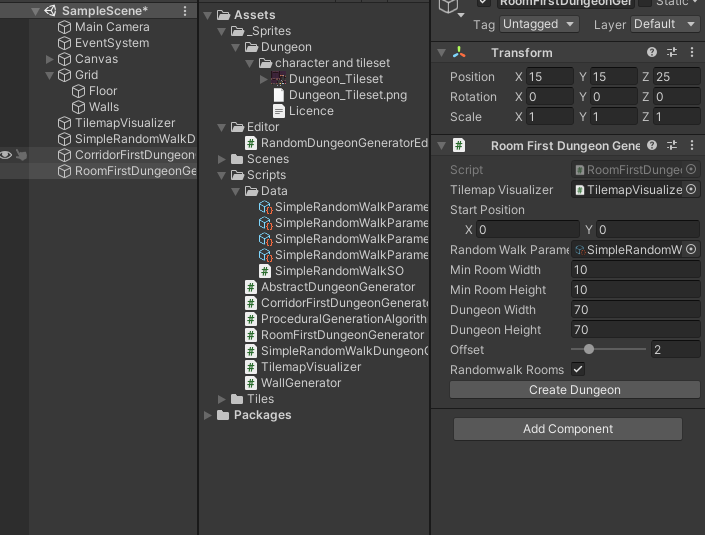

완성본



전체 코드

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public static class WallGenerator
{
    public static void CreateWalls(HashSet<Vector2Int> floorPositions, TilemapVisualizer tilemapVisualizer)
    {
        var basicWallPositions = FindWallsInDirections(floorPositions, Direction2D.cardinalDirectionsList);
        foreach (var position in basicWallPositions)
        {
            tilemapVisualizer.PaintsingleBasicWall(position);
        }
    }

    private static HashSet<Vector2Int> FindWallsInDirections(HashSet<Vector2Int> floorPositions, List<Vector2Int> directionList)
    {
        HashSet<Vector2Int> wallPositions = new HashSet<Vector2Int>();
        foreach (var position in floorPositions)
        {
            foreach (var direction in directionList)
            {
                var neighbourPosition = position + direction;
                if (floorPositions.Contains(neighbourPosition) == false)
                    wallPositions.Add(neighbourPosition);

            }
        }
        return wallPositions;
    }
}

using System;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.Tilemaps;

public class TilemapVisualizer : MonoBehaviour
{
    [SerializeField]
    private Tilemap floorTilemap, wallTilemap;
    [SerializeField]
    private TileBase floorTile, wallTop;

    public void PaintFloorTiles(IEnumerable<Vector2Int> floorPositions)
    {
        PaintTiles(floorPositions, floorTilemap, floorTile);
    }

    internal void PaintsingleBasicWall(Vector2Int position)
    {
        PaintSingleTile(wallTilemap, wallTop, position);
    }

    private void PaintTiles(IEnumerable<Vector2Int> positions, Tilemap tilemap, TileBase tile)
    {
        foreach(var position in positions)
        {
            PaintSingleTile(tilemap, tile, position);
        }
    }

    private void PaintSingleTile(Tilemap tilemap, TileBase tile, Vector2Int position)
    {
        var tilePosition = tilemap.WorldToCell((Vector3Int)position);
        tilemap.SetTile(tilePosition, tile);
    }

    public void Clear()
    {
        floorTilemap.ClearAllTiles();
        wallTilemap.ClearAllTiles();
    }
}

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

[CreateAssetMenu(fileName ="SimpleRandomWalkParameters_",menuName = "PCG/SimpleRandomWalkData")]
public class SimpleRandomWalkSO : ScriptableObject
{
    public int iterations = 10, walkLenght = 10;
    public bool startRandomlyEachIteration = true;
}

using System;
using System.Collections;
using System.Collections.Generic;
using System.Linq;
using UnityEngine;
using Random = UnityEngine.Random;

public class SimpleRandomWalkDungeonGenerator : AbstractDungeonGenerator
{


    [SerializeField]
    protected SimpleRandomWalkSO randomWalkParameters;



    protected override void RunProceduralGeneration()
    {
        HashSet<Vector2Int> floorPositions = RunRandomWalk(randomWalkParameters, startPosition);
        tilemapVisualizer.Clear();
        tilemapVisualizer.PaintFloorTiles(floorPositions);
        WallGenerator.CreateWalls(floorPositions, tilemapVisualizer);
    }

    protected HashSet<Vector2Int> RunRandomWalk(SimpleRandomWalkSO parameters, Vector2Int position)
    {
        var currentPosition = position;
        HashSet<Vector2Int> floorPositions = new HashSet<Vector2Int>();
        for (int i = 0; i < parameters.iterations; i++)
        {
            var path = ProceduralGenerationAlgorithms.SimpleRandomWalk(currentPosition, parameters.walkLenght);
            floorPositions.UnionWith(path);
            if (parameters.startRandomlyEachIteration)
                currentPosition = floorPositions.ElementAt(Random.Range(0, floorPositions.Count));
        }
        return floorPositions;
    }
}

using System.Collections;
using System.Collections.Generic;
using UnityEditor;
using UnityEngine;

[CustomEditor(typeof(AbstractDungeonGenerator), true)]
public class RandomDungeonGeneratorEditor : Editor
{
    AbstractDungeonGenerator generator;

    private void Awake()
    {
        generator = (AbstractDungeonGenerator)target;
    }

    public override void OnInspectorGUI()
    {
        base.OnInspectorGUI();
        if(GUILayout.Button("Create Dungeon"))
        {
            generator.GenerateDungeon();
        }
    }
}

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public static class ProceduralGenerationAlgorithms
{
    public static HashSet<Vector2Int> SimpleRandomWalk(Vector2Int startPosition, int walkLenght)
    {
        HashSet<Vector2Int> path = new HashSet<Vector2Int>();

        path.Add(startPosition);  //시작
        var previousPosition = startPosition;

        for (int i = 0; i < walkLenght; i++)
        {
            var newPosition = previousPosition + Direction2D.GetRandomCardinalDirection();
            path.Add(newPosition);
            previousPosition = newPosition;
        }
        return path;
    }

    public static List<Vector2Int> RandomWalkCorridor(Vector2Int startPosition, int corriderLength)
    {
        List<Vector2Int> corridor = new List<Vector2Int>();
        var direction = Direction2D.GetRandomCardinalDirection();
        var currentPosition = startPosition;
        corridor.Add(currentPosition);

        for (int i = 0; i < corriderLength; i++)
        {
            currentPosition += direction;
            corridor.Add(currentPosition);
        }
        return corridor;

    }

    public static List<BoundsInt> BinarySpacePartitioning(BoundsInt spaceToSplit, int minwidth, int minHeight)
    {
        Queue<BoundsInt> roomsQueue = new Queue<BoundsInt>();
        List<BoundsInt> roomList = new List<BoundsInt>();
        roomsQueue.Enqueue(spaceToSplit);
        while(roomsQueue.Count > 0)
        {
            var room = roomsQueue.Dequeue();
            if(room.size.y >= minHeight && room.size.x >= minwidth)
            {
                if (UnityEngine.Random.value < 0.5f)
                {
                    if(room.size.y >= minHeight * 2)
                    {
                        SplitHorizontally(minHeight, roomsQueue, room);
                    }else if(room.size.x >= minwidth * 2)
                    {
                        SplitVertically(minwidth, roomsQueue, room);
                    }else if(room.size.x >= minwidth && room.size.y >= minHeight)
                    {
                        roomList.Add(room);
                    }
                }
                else
                {

                    if (room.size.x >= minwidth * 2)
                    {
                        SplitVertically(minwidth, roomsQueue, room);
                    }
                    else if (room.size.y >= minHeight * 2)
                    {
                        SplitHorizontally(minHeight, roomsQueue, room);
                    }
                    else if (room.size.x >= minwidth && room.size.y >= minHeight)
                    {
                        roomList.Add(room);
                    }
                }
            }
        }
        return roomList;
    }

    private static void SplitVertically(int minwidth, Queue<BoundsInt> roomsQueue, BoundsInt room)
    {
        var xSplit = Random.Range(1, room.size.x);
        BoundsInt room1 = new BoundsInt(room.min, new Vector3Int(xSplit, room.size.y, room.size.z));
        BoundsInt room2 = new BoundsInt(new Vector3Int(room.min.x + xSplit, room.min.y, room.min.z),
            new Vector3Int(room.size.x - xSplit, room.size.y, room.size.z));
        roomsQueue.Enqueue(room1);
        roomsQueue.Enqueue(room2);
    }

    private static void SplitHorizontally(int minHeight, Queue<BoundsInt> roomsQueue, BoundsInt room)
    {
        var ySplit = Random.Range(1, room.size.y); //최소높이 =  y - 높이
        BoundsInt room1 = new BoundsInt(room.min, new Vector3Int(room.size.x, ySplit, room.min.z));
        BoundsInt room2 = new BoundsInt(new Vector3Int(room.min.x, room.min.y + ySplit, room.min.z),
            new Vector3Int(room.size.x, room.size.y - ySplit, room.size.z));
        roomsQueue.Enqueue(room1);
        roomsQueue.Enqueue(room2);
    }
}

public static class Direction2D
{
    public static List<Vector2Int> cardinalDirectionsList = new List<Vector2Int>
    {
        new Vector2Int(0,1),    //위
        new Vector2Int(1,0),    //오른쪽
        new Vector2Int(0, -1),  //아래
        new Vector2Int(-1, 0)   //왼쪽
    };

    public static Vector2Int GetRandomCardinalDirection()
    {
        return cardinalDirectionsList[Random.Range(0, cardinalDirectionsList.Count)];
    }
}

using System;
using System.Collections;
using System.Collections.Generic;
using System.Linq;
using Unity.Mathematics;
using UnityEngine;

public class CorridorFirstDungeonGenerator : SimpleRandomWalkDungeonGenerator
{
    [SerializeField]
    private int corridorLength = 14, corridorCount = 5;
    [SerializeField]
    private float roomPercent = 0.8f;


    protected override void RunProceduralGeneration()
    {
        CorridorFirstGeneration();
    }

    private void CorridorFirstGeneration()
    {
        HashSet<Vector2Int> floorPositions = new HashSet<Vector2Int>();
        HashSet<Vector2Int> potentialRoomPositions = new HashSet<Vector2Int>();

        CreateCorridors(floorPositions, potentialRoomPositions);

        HashSet<Vector2Int> roomPositions = CreateRooms(potentialRoomPositions);

        List<Vector2Int> deadEnds = FindAllDeadEnds(floorPositions);

        CreatRoomsAtDeadEnd(deadEnds, roomPositions);

        floorPositions.UnionWith(roomPositions);

        tilemapVisualizer.PaintFloorTiles(floorPositions);
        WallGenerator.CreateWalls(floorPositions, tilemapVisualizer);
    }

    private void CreatRoomsAtDeadEnd(List<Vector2Int> deadEnds, HashSet<Vector2Int> roomFloors)
    {
        foreach (var position in deadEnds)
        {
            if(roomFloors.Contains(position) == false)
            {
                var room = RunRandomWalk(randomWalkParameters, position);
                roomFloors.UnionWith(room);
            }
        }
    }

    private List<Vector2Int> FindAllDeadEnds(HashSet<Vector2Int> floorPositions)
    {
        List<Vector2Int> deadEnds = new List<Vector2Int>();
        foreach (var position in floorPositions)
        {
            int neighboursCount = 0;
            foreach (var direction in Direction2D.cardinalDirectionsList)
            {
                if (floorPositions.Contains(position + direction))
                    neighboursCount++;
            }
            if (neighboursCount == 1)
                deadEnds.Add(position);
        }
        return deadEnds;
    }

    private HashSet<Vector2Int> CreateRooms(HashSet<Vector2Int> potentialRoomPositions)
    {
        HashSet<Vector2Int> roomPositions = new HashSet<Vector2Int>();
        int roomToCreateCount = Mathf.RoundToInt(potentialRoomPositions.Count * roomPercent);

        List<Vector2Int> roomToCreate = potentialRoomPositions.OrderBy(bool2x2 => Guid.NewGuid()).Take(roomToCreateCount).ToList();

        foreach (var roomPosition in roomToCreate)
        {
            var roomFloor = RunRandomWalk(randomWalkParameters, roomPosition);
            roomPositions.UnionWith(roomFloor);
        }
        return roomPositions;
    }

    private void CreateCorridors(HashSet<Vector2Int> floorPositions, HashSet<Vector2Int> potentialRoomPositions)
    {
        var currentPosition = startPosition;
        potentialRoomPositions.Add(currentPosition);

        for (int i = 0; i < corridorCount; i++)
        {
            var corridor = ProceduralGenerationAlgorithms.RandomWalkCorridor(currentPosition, corridorLength);
            currentPosition = corridor[corridor.Count - 1];
            potentialRoomPositions.Add(currentPosition);
            floorPositions.UnionWith(corridor);
        }
    }
}

using System;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using Random = UnityEngine.Random;

public class RoomFirstDungeonGenerator : SimpleRandomWalkDungeonGenerator
{
    [SerializeField]
    private int minRoomWidth = 4, minRoomHeight = 4;
    [SerializeField]
    private int dungeonWidth = 20, dungeonHeight = 20;
    [SerializeField]
    [Range(0, 10)]
    private int offset = 1;
    [SerializeField]
    private bool randomwalkRooms = false;


    protected override void RunProceduralGeneration()
    {
        CreatRooms();
    }

    private void CreatRooms()
    {
        var roomsList = ProceduralGenerationAlgorithms.BinarySpacePartitioning(new BoundsInt((Vector3Int)startPosition, new Vector3Int
            (dungeonWidth, dungeonHeight, 0)), minRoomWidth, minRoomHeight);

        HashSet<Vector2Int> floor = new HashSet<Vector2Int>();

        if (randomwalkRooms)
        {
            floor = CreateRoomsRandomly(roomsList);
        }
        else
        {
            floor = CreateSimpleRooms(roomsList);
        }

        List<Vector2Int> roomCenters = new List<Vector2Int>();
        foreach (var room in roomsList)
        {
            roomCenters.Add((Vector2Int)Vector3Int.RoundToInt(room.center));
        }

        HashSet<Vector2Int> corridors = ConnectRooms(roomCenters);
        floor.UnionWith(corridors);

        tilemapVisualizer.PaintFloorTiles(floor);
        WallGenerator.CreateWalls(floor, tilemapVisualizer);
    }

    private HashSet<Vector2Int> CreateRoomsRandomly(List<BoundsInt> roomsList)
    {
        HashSet<Vector2Int> floor = new HashSet<Vector2Int>();
        for (int i = 0; i < roomsList.Count; i++)
        {
            var roomBounds = roomsList[i];
            var roomCenter = new Vector2Int(Mathf.RoundToInt(roomBounds.center.x), Mathf.RoundToInt(roomBounds.center.y));
            var roomFloor = RunRandomWalk(randomWalkParameters, roomCenter);
            foreach (var position in roomFloor)
            {
                if(position.x >= (roomBounds.xMin + offset) && position.x <= (roomBounds.xMax - offset) && position.y >= (roomBounds.yMin -
                    offset) && position.y <= (roomBounds.yMax - offset))
                {
                    floor.Add(position);
                }
            }
        }
        return floor;
    }

    private HashSet<Vector2Int> ConnectRooms(List<Vector2Int> roomCenters)
    {
        HashSet<Vector2Int> corridors = new HashSet<Vector2Int>();
        var currentRoomCenter = roomCenters[Random.Range(0, roomCenters.Count)];
        roomCenters.Remove(currentRoomCenter);

        while (roomCenters.Count > 0)
        {
            Vector2Int closest = FindClosetPointTo(currentRoomCenter, roomCenters);
            roomCenters.Remove(closest);
            HashSet<Vector2Int> newcorridor = CreateCorridor(currentRoomCenter, closest);
            currentRoomCenter = closest;
            corridors.UnionWith(newcorridor);
        }
        return corridors;
    }

    private HashSet<Vector2Int> CreateCorridor(Vector2Int currentRoomCenter, Vector2Int destination)
    {
        HashSet<Vector2Int> corridor = new HashSet<Vector2Int>();
        var position = currentRoomCenter;
        corridor.Add(position);
        while (position.y != destination.y)
        {
            if(destination.y > position.y)
            {
                position += Vector2Int.up;
            }
            else if(destination.y < position.y)
            {
                position += Vector2Int.down;
            }
            corridor.Add(position);
        }
        while (position.x != destination.x)
        {
            if(destination.x > position.x)
            {
                position += Vector2Int.right;
            }else if(destination.x < position.x)
            {
                position += Vector2Int.left;
            }
            corridor.Add(position);
        }
        return corridor;
    }

    private Vector2Int FindClosetPointTo(Vector2Int currentRoomCenter, List<Vector2Int> roomCenters)
    {
        Vector2Int closest = Vector2Int.zero;
        float distance = float.MaxValue;
        foreach (var position in roomCenters)
        {
            float currentDistance = Vector2Int.Distance(position, currentRoomCenter);
            if (currentDistance < distance)
            {
                distance = currentDistance;
                closest = position;
            }
        }
        return closest;
    }

    private HashSet<Vector2Int> CreateSimpleRooms(List<BoundsInt> roomsList)
    {
        HashSet<Vector2Int> floor = new HashSet<Vector2Int>();
        foreach (var room in roomsList)
        {

            for (int col = offset; col < room.size.x - offset; col++)
            {
                for (int row = offset; row < room.size.y - offset; row++)
                {
                    Vector2Int position = (Vector2Int)room.min + new Vector2Int(col, row);
                    floor.Add(position);
                }
            }
        }
        return floor;
    }
}

using System;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public abstract class AbstractDungeonGenerator : MonoBehaviour
{
    [SerializeField]
    protected TilemapVisualizer tilemapVisualizer = null;
    [SerializeField]
    protected Vector2Int startPosition = Vector2Int.zero;

    public void GenerateDungeon()
    {
        tilemapVisualizer.Clear();
        RunProceduralGeneration();
    }

    protected abstract void RunProceduralGeneration();

}
