[팀 프로젝트] - 랜덤 워크와 이진 공간 분할 알고리즘(맵 생성6)

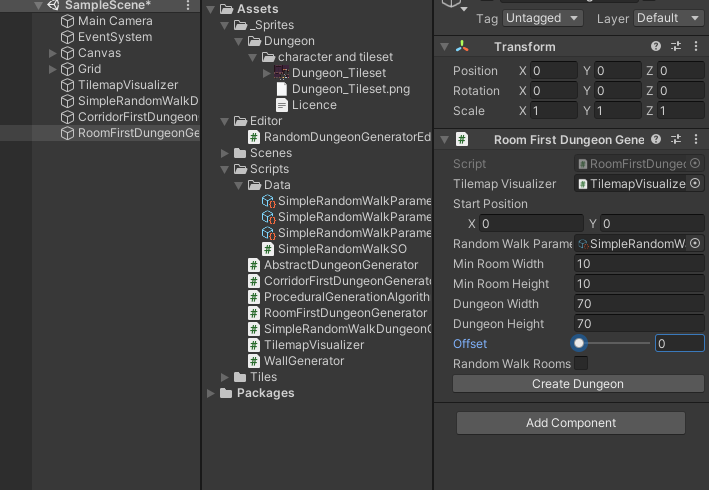

현재 진행 상황



코드

using System;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class RoomFirstDungeonGenerator : SimpleRandomWalkDungeonGenerator
{
    [SerializeField]
    private int minRoomWidth = 4, minRoomHeight = 4;
    [SerializeField]
    private int dungeonWidth = 20, dungeonHeight = 20;
    [SerializeField]
    [Range(0, 10)]
    private int offset = 1;
    [SerializeField]
    private bool randomWalkRooms = false;


    protected override void RunProceduralGeneration()
    {
        CreatRooms();
    }

    private void CreatRooms()
    {
        var roomsList = ProceduralGenerationAlgorithms.BinarySpacePartitioning(new BoundsInt((Vector3Int)startPosition, new Vector3Int
            (dungeonWidth, dungeonHeight, 0)), minRoomWidth, minRoomHeight);

        HashSet<Vector2Int> floor = new HashSet<Vector2Int>();
        floor = CreateSimpleRooms(roomsList);

        tilemapVisualizer.PaintFloorTiles(floor);
        WallGenerator.CreateWalls(floor, tilemapVisualizer);
    }

    private HashSet<Vector2Int> CreateSimpleRooms(List<BoundsInt> roomsList)
    {
        HashSet<Vector2Int> floor = new HashSet<Vector2Int>();
        foreach (var room in roomsList)
        {

            for (int col = offset; col < room.size.x - offset; col++)
            {
                for (int row = offset; row < room.size.y - offset; row++)
                {
                    Vector2Int position = (Vector2Int)room.min + new Vector2Int(col, row);
                    floor.Add(position);
                }
            }
        }
        return floor;
    }
}

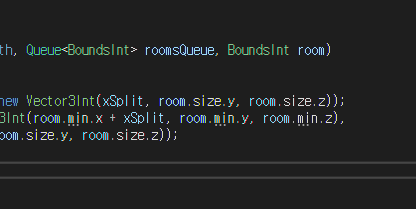

y값, z값 수정  min -> size

---

방 더 많이 생성하기

복도를 만들었다



코드 수정

using System;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using Random = UnityEngine.Random;

public class RoomFirstDungeonGenerator : SimpleRandomWalkDungeonGenerator
{
    [SerializeField]
    private int minRoomWidth = 4, minRoomHeight = 4;
    [SerializeField]
    private int dungeonWidth = 20, dungeonHeight = 20;
    [SerializeField]
    [Range(0, 10)]
    private int offset = 1;
    [SerializeField]
    private bool randomWalkRooms = false;


    protected override void RunProceduralGeneration()
    {
        CreatRooms();
    }

    private void CreatRooms()
    {
        var roomsList = ProceduralGenerationAlgorithms.BinarySpacePartitioning(new BoundsInt((Vector3Int)startPosition, new Vector3Int
            (dungeonWidth, dungeonHeight, 0)), minRoomWidth, minRoomHeight);

        HashSet<Vector2Int> floor = new HashSet<Vector2Int>();

        floor = CreateSimpleRooms(roomsList);

        List<Vector2Int> roomCenters = new List<Vector2Int>();
        foreach (var room in roomsList)
        {
            roomCenters.Add((Vector2Int)Vector3Int.RoundToInt(room.center));
        }

        HashSet<Vector2Int> corridors = ConnectRooms(roomCenters);
        floor.UnionWith(corridors);

        tilemapVisualizer.PaintFloorTiles(floor);
        WallGenerator.CreateWalls(floor, tilemapVisualizer);
    }

    private HashSet<Vector2Int> ConnectRooms(List<Vector2Int> roomCenters)
    {
        HashSet<Vector2Int> corridors = new HashSet<Vector2Int>();
        var currentRoomCenter = roomCenters[Random.Range(0, roomCenters.Count)];
        roomCenters.Remove(currentRoomCenter);

        while (roomCenters.Count > 0)
        {
            Vector2Int closest = FindClosetPointTo(currentRoomCenter, roomCenters);
            roomCenters.Remove(closest);
            HashSet<Vector2Int> newcorridor = CreateCorridor(currentRoomCenter, closest);
            currentRoomCenter = closest;
            corridors.UnionWith(newcorridor);
        }
        return corridors;
    }

    private HashSet<Vector2Int> CreateCorridor(Vector2Int currentRoomCenter, Vector2Int destination)
    {
        HashSet<Vector2Int> corridor = new HashSet<Vector2Int>();
        var position = currentRoomCenter;
        corridor.Add(position);
        while (position.y != destination.y)
        {
            if(destination.y > position.y)
            {
                position += Vector2Int.up;
            }
            else if(destination.y < position.y)
            {
                position += Vector2Int.down;
            }
            corridor.Add(position);
        }
        while (position.x != destination.x)
        {
            if(destination.x > position.x)
            {
                position += Vector2Int.right;
            }else if(destination.x < position.x)
            {
                position += Vector2Int.left;
            }
            corridor.Add(position);
        }
        return corridor;
    }

    private Vector2Int FindClosetPointTo(Vector2Int currentRoomCenter, List<Vector2Int> roomCenters)
    {
        Vector2Int closest = Vector2Int.zero;
        float distance = float.MaxValue;
        foreach (var position in roomCenters)
        {
            float currentDistance = Vector2Int.Distance(position, currentRoomCenter);
            if (currentDistance < distance)
            {
                distance = currentDistance;
                closest = position;
            }
        }
        return closest;
    }

    private HashSet<Vector2Int> CreateSimpleRooms(List<BoundsInt> roomsList)
    {
        HashSet<Vector2Int> floor = new HashSet<Vector2Int>();
        foreach (var room in roomsList)
        {

            for (int col = offset; col < room.size.x - offset; col++)
            {
                for (int row = offset; row < room.size.y - offset; row++)
                {
                    Vector2Int position = (Vector2Int)room.min + new Vector2Int(col, row);
                    floor.Add(position);
                }
            }
        }
        return floor;
    }
}

---

using System;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using Random = UnityEngine.Random;

public class RoomFirstDungeonGenerator : SimpleRandomWalkDungeonGenerator
{
    [SerializeField]
    private int minRoomWidth = 4, minRoomHeight = 4;
    [SerializeField]
    private int dungeonWidth = 20, dungeonHeight = 20;
    [SerializeField]
    [Range(0, 10)]
    private int offset = 1;
    [SerializeField]
    private bool randomWalkRooms = false;


    protected override void RunProceduralGeneration()
    {
        CreatRooms();
    }

    private void CreatRooms()
    {
        var roomsList = ProceduralGenerationAlgorithms.BinarySpacePartitioning(new BoundsInt((Vector3Int)startPosition, new Vector3Int
            (dungeonWidth, dungeonHeight, 0)), minRoomWidth, minRoomHeight);

        HashSet<Vector2Int> floor = new HashSet<Vector2Int>();

        if (randomWalkRooms)
        {
            floor = CreateRoomsRandomly(roomsList);
        }
        else
        {
            floor = CreateSimpleRooms(roomsList);
        }

        List<Vector2Int> roomCenters = new List<Vector2Int>();
        foreach (var room in roomsList)
        {
            roomCenters.Add((Vector2Int)Vector3Int.RoundToInt(room.center));
        }

        HashSet<Vector2Int> corridors = ConnectRooms(roomCenters);
        floor.UnionWith(corridors);

        tilemapVisualizer.PaintFloorTiles(floor);
        WallGenerator.CreateWalls(floor, tilemapVisualizer);
    }

    private HashSet<Vector2Int> CreateRoomsRandomly(List<BoundsInt> roomsList)
    {
        HashSet<Vector2Int> floor = new HashSet<Vector2Int>();
        for (int i = 0; i < roomsList.Count; i++)
        {
            var roomBounds = roomsList[i];
            var roomCenter = new Vector2Int(Mathf.RoundToInt(roomBounds.center.x), Mathf.RoundToInt(roomBounds.center.y));
            var roomFloor = RunRandomWalk(randomWalkParameters, roomCenter);
            foreach (var position in roomFloor)
            {
                if(position.x >= (roomBounds.xMin + offset) && position.x <= (roomBounds.xMin - offset) && position.y >= (roomBounds.yMin -
                    offset) && position.y <= (roomBounds.yMin - offset))
                {
                    floor.Add(position);
                }
            }
        }
        return floor;
    }

    private HashSet<Vector2Int> ConnectRooms(List<Vector2Int> roomCenters)
    {
        HashSet<Vector2Int> corridors = new HashSet<Vector2Int>();
        var currentRoomCenter = roomCenters[Random.Range(0, roomCenters.Count)];
        roomCenters.Remove(currentRoomCenter);

        while (roomCenters.Count > 0)
        {
            Vector2Int closest = FindClosetPointTo(currentRoomCenter, roomCenters);
            roomCenters.Remove(closest);
            HashSet<Vector2Int> newcorridor = CreateCorridor(currentRoomCenter, closest);
            currentRoomCenter = closest;
            corridors.UnionWith(newcorridor);
        }
        return corridors;
    }

    private HashSet<Vector2Int> CreateCorridor(Vector2Int currentRoomCenter, Vector2Int destination)
    {
        HashSet<Vector2Int> corridor = new HashSet<Vector2Int>();
        var position = currentRoomCenter;
        corridor.Add(position);
        while (position.y != destination.y)
        {
            if(destination.y > position.y)
            {
                position += Vector2Int.up;
            }
            else if(destination.y < position.y)
            {
                position += Vector2Int.down;
            }
            corridor.Add(position);
        }
        while (position.x != destination.x)
        {
            if(destination.x > position.x)
            {
                position += Vector2Int.right;
            }else if(destination.x < position.x)
            {
                position += Vector2Int.left;
            }
            corridor.Add(position);
        }
        return corridor;
    }

    private Vector2Int FindClosetPointTo(Vector2Int currentRoomCenter, List<Vector2Int> roomCenters)
    {
        Vector2Int closest = Vector2Int.zero;
        float distance = float.MaxValue;
        foreach (var position in roomCenters)
        {
            float currentDistance = Vector2Int.Distance(position, currentRoomCenter);
            if (currentDistance < distance)
            {
                distance = currentDistance;
                closest = position;
            }
        }
        return closest;
    }

    private HashSet<Vector2Int> CreateSimpleRooms(List<BoundsInt> roomsList)
    {
        HashSet<Vector2Int> floor = new HashSet<Vector2Int>();
        foreach (var room in roomsList)
        {

            for (int col = offset; col < room.size.x - offset; col++)
            {
                for (int row = offset; row < room.size.y - offset; row++)
                {
                    Vector2Int position = (Vector2Int)room.min + new Vector2Int(col, row);
                    floor.Add(position);
                }
            }
        }
        return floor;
    }
}
